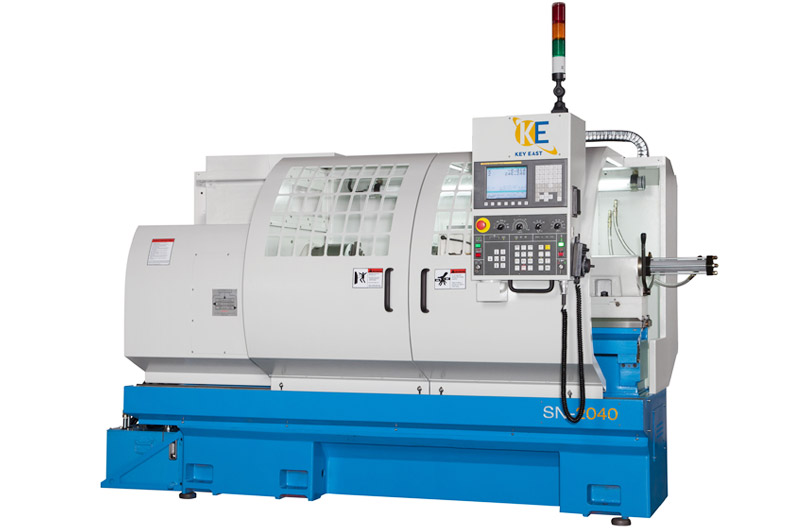

SN-2040

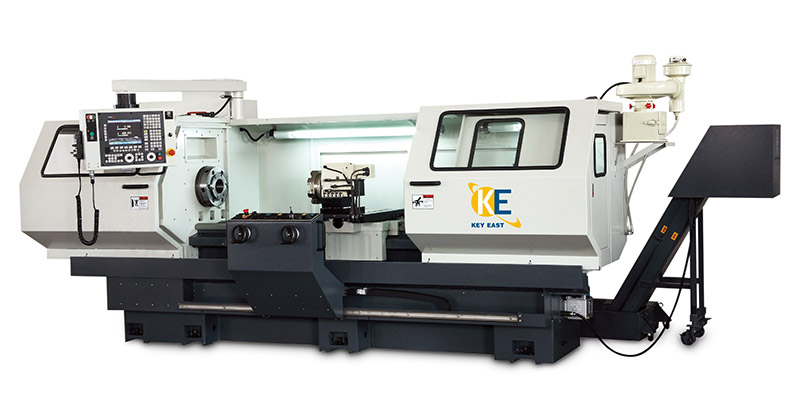

SN-2280
- SPECIFICATIONS

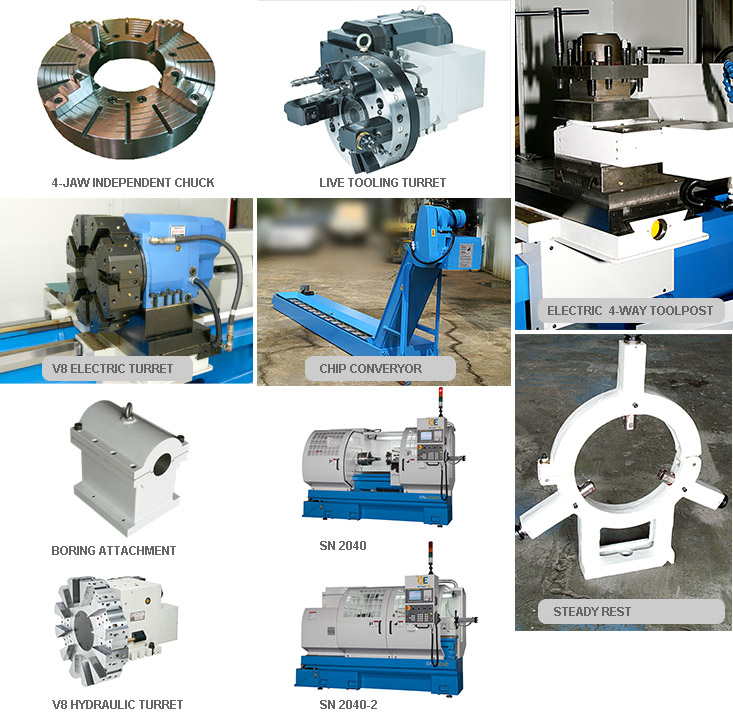

- ACCESSORIES
FLAT BED CNC Lathe SN 20 22 SERIES SPECS
| Model | unit | SN-20 | SN-22 | |||
|---|---|---|---|---|---|---|
| Capacity | Center height | mm(inch) | 255(10.04") | 280(11.02") | ||
| Distance between centers | mm(inch) | 1000(39"), 1500(59"), 2000(79"), 3000(118") | ||||
| Swing over bed | mm(inch) | 510 (20.08") | 560 (22.05") | |||
| Swing over gap | mm(inch) | 710 (27.95") | 760 (29.92") | |||
| Swing over cross slide | mm(inch) | 290 (11") | 340 (13.39") | |||
| Width of bed | mm(inch) | 350 (14") | ||||
| Bed way | 3 V way + 1 flat way | |||||
| Cross slide width | mm(inch) | 220 (8.66") | ||||
| Gap width | mm(inch) | *305 (12") | ||||
| Headstock & main spindle | Spindle bore / nose | mm(inch) | 85(3.4")D1-8 / *105 (4")D1-11 | |||
| Spindle tapper | MT #7 | |||||
| Spindle speed | rpm | 3.4" bore(30~2000) / *4"bore(30~1500)(auto 3 steps) | ||||
| Cross slide (X-axis) & Carriage (Z-axis) | Cross slide travel (X-axis) | mm(inch) | 380 (15") | |||
| Longitudinal travel (Z-axis) | mm(inch) | 1000(39"), 1500(59"), 2000 (79"), 3000 (118") | ||||
| AC servo motor (X-axis) | kw | 1 | ||||
| AC servo motor (Z-axis) | kw | 1 | ||||
| Dia of ball screw (X-axis) | mm | Φ25 x P5 x C3 | ||||
| Dia of ball screw (Z-axis) | mm | Φ40 x P10 x C5 | ||||
| Rapid traverse speed (X-axis) | mm/min | 6000 | ||||
| Rapid traverse speed (Z-axis) | mm/min | 8000 | ||||
| Tailstock | Quill taper | MT #5 | ||||
| Quill diameter | mm(inch) | Φ75 (3") | ||||
| Quill travel | mm(inch) | 160 (6") | ||||
| Turret / toolpost | Tool station | *horizontal type 4T | *vertical type 8T / *vertical type 10T | |||
| Size of external turning tool | mm | 20 | ||||
| Motor | Main spindle | kw | 11/*15 [*15hp (15hp inverter)] | |||
| Headstock speed auto change x 1 | w | 25 | ||||
| Lube system pump | w | 22 | ||||
| Hydraulic oil pump | hp | 2 | ||||
| Coolant pump | hp | 1/8(90 w) | ||||
| Accuracy | Positioning | mm | +0.01 / 300 | |||
| Repeatability | mm | +0.005 | ||||
| Spindle run-out | mm | +0.01 | ||||
| Tank Capacit | Hydraulic tank | l | 60 | |||
| Coolant tank | l | 66 | ||||
| Controller | Controller | brand | Syntec / Simens / Fagor / Fanuc / Mitsubishi | |||
| Controllable | axis | 2 | ||||
| Weight | Net / Gross | kg(lb) | 2800(6160)/
3000(6600) |
3100(6820)/
3350(7370) |
3400(7480)/
3700(8140) |
4000(8800)/ 4400(9680) |
| Dimensions | Floor space (full guard) L x W x H | mm(inch) | 2850x1650 x1950 (112"x65"x77") |
3350x1650 x1950 (132"x65"x77") |
3850x1650 x1950 (152"x65"x77") |
4850x1650 x1950 (191"x65"x77") |
| Packing Size (full guard) L x W x H | mm(inch) | 3100x 2200x2200 (122"x87"x87") |
3600x 2200x2200 (142"x87"x87") |
4100x 2200x2200 (161"x87"x87") |
5100x 2200x2200 (200"x87"x87") |
|
Design and specs are subject to change without notice.
