MV Series

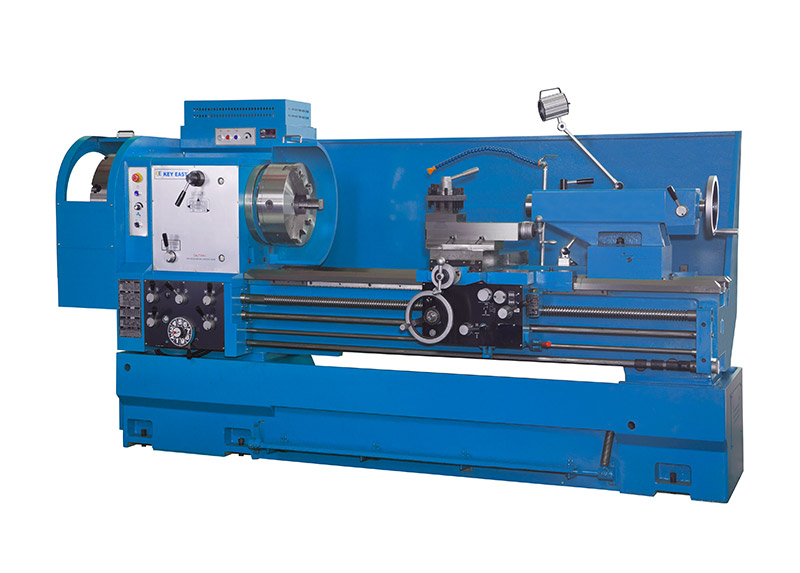

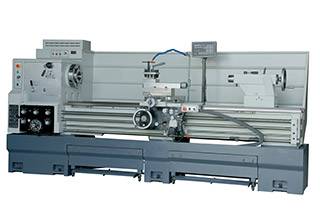

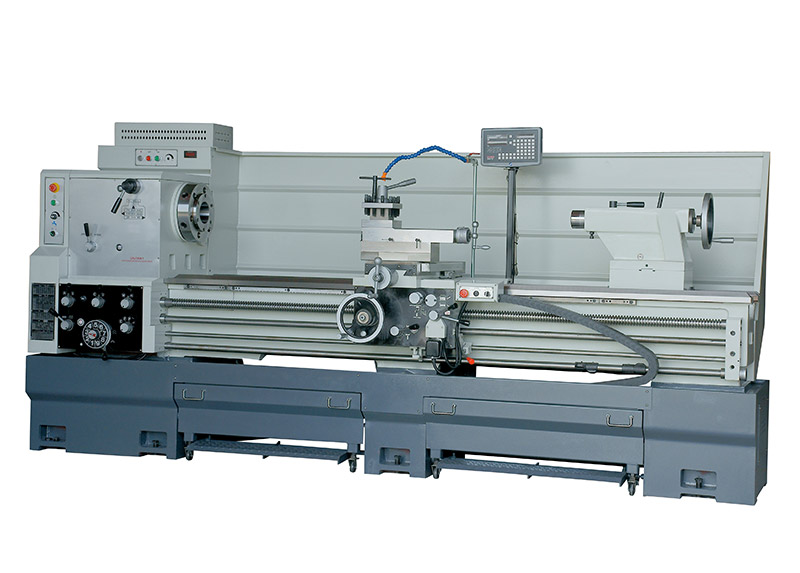

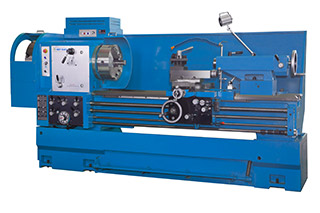

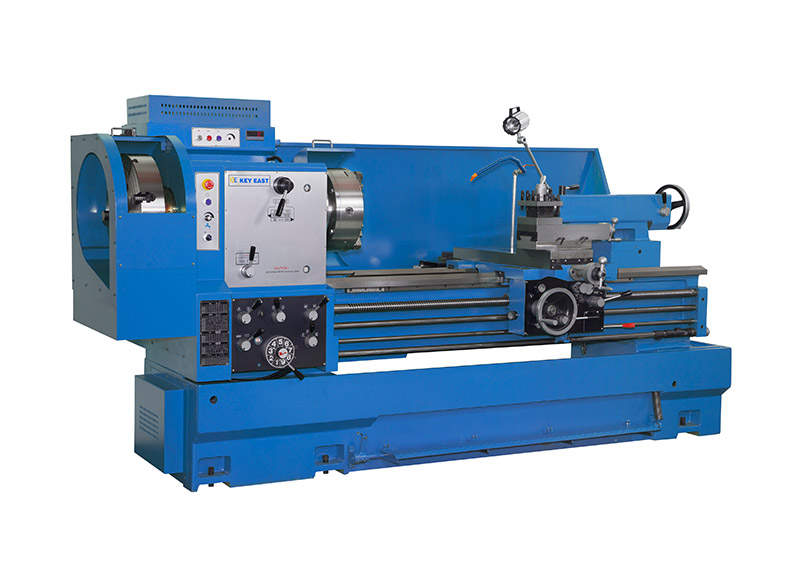

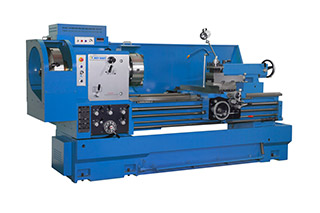

Conventional Lathe MV 24 26 28 30 SERIES

Model	MV-2440/ MV-2640/ MV-2840/ MV-3040	MV-2460/ MV-2660/ MV-2860/ MV-3060	MV-2480/ MV-2680/ MV-2880/ MV-3080	MV-24120/ MV-26120/ MV-28120/ MV-30120	MV-24160/ MV-26160/ MV-28160/ MV-30160
Capacity
Swing over bed mm	610(24.02")/660(25.98")/710(27.95")/760(29.92")
Swing over cross slide mm	390(15")/440(17")/490(19")/540(21")
Swing over gap mm	890(35.04")/940(37.01")/990(38.98")/1040(40.95")
Gap width mm	350(13.78")
Center height mm	305(12.01")/330(12.99")/355(13.98")/380(14.96")
Distance between centers mm	1000 (39")	1500 (59")	2000 (79")	3000 (118")	4000 (158")
Bed width	450(17") (3V + 1 flat)
Cross slide width	250(10")
Headstock
Spindle bore / nose mm	105(4")(D1-11)/*155(6")(A2-11)
Spindle taper	MT#7
Spindle speed range rpm	4" bore 20-1500/*6" bore 20-1000
Spindle speed steps	3 steps (variable speed)
Main motor hp	20 (inverter 20)/* 30 (inverter 30)
Carriage & Apron
Cross slide travel mm	350(14")
Compound slide travel mm	225(8.85")
Tailstock
Diameter of quill mm	105(4")
Travel of quill mm	200(7.87")
Center	MT#5
4 way tool shank mm	25
Threading / Feeding
Diameter of leadscrew mm	Φ45 (1-3/4") x 2T.P.I. or P=12
Metric threads mm	0.8– 14
Inch threads in	2 – 28 (36 kinds)
Module threads	0.5-7
DP threads	4-56
Longitudinal feeds mm	0.05-0.7
Weight
Net / Gross kgs (lb)	2000(4400)/ 2300(5060)	2500(5500)/ 2900(6380)	3000(6600)/ 3500(7700)	3500(7700)/ 4100(9020)	4000(8800)/ 4650(10230)
Dimensions
Floor size LxWxH mm	2550(100")x 1450(57")x 1700(67")	3050(120")x 1450(57")x 1700(67")	3550(140")x 1450(57")x 1700(67")	4550(179")x 1450(57")x 1700(67")	5550(219")x 1450(57")x 1700(67")
Packing size LxWxH mm	2650(104")x 1600(63")x 1950(77")	3150(124")x 1600(63")x 1950(77")	3650(144")x 1600(63")x 1950(77")	4650(183")x 1600(63")x 1950(77")	5650(222")x 1600(63")x 1950(77")

*is option
